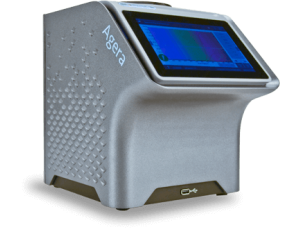

0/45 circumferential geometry, 60-degree gloss meter, UV-controllable LED illumination and 5-megapixel camera Spectrophotometer for Color & Gloss Measurement of Samples.
- Simultaneous color and gloss measurement
- 0°/45° circumferential geometry replicating human vision
- Multiple port plates to accommodate a range of sample sizes
- Built in USB, Ethernet, Wi-Fi and Email data communications
- Industrial touchscreen with modern user interface
- Embedded EasyMatch Essentials QC Software
Measurement Principle: Dual-beam Reflectance Spectrophotometer / Gloss meter
Geometry: 0°/45°c (circumferential) ASTM E1164
Measurement Method: Port up or Port forward
Read Time: < 3 sec.
Gloss Geometry: 60-degree (60º)
Image Capture: High-resolution, D65 illuminated, 0°/45° image viewing, image capture and image recall
Color: XLAV - 51 mm (2 in), LAV - 25.4 mm (1 in), MAV - 16.9 mm (5/8 in)
Gloss: 8 mm (5/16 in)
