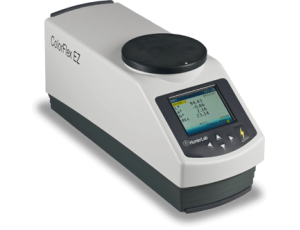

ColorFlex EZ

  • LOGIN FOR MORE INFO
0

45/0 Geometry Color Spectrophotometer for Color Measurement of Samples.

  • Measures the reflected color of solids and liquids Product-standard storage with Pass/Fail tolerances Displays Color Data, Color Plot, Spectral Data and Spectral Plots Available with 45°/0° measurement geometry
  • Requires very little bench space
  • Can be connected to a printer or a PC EasyMatch QC quality control software

Share

Measurement Principle: Port up or Port forward dual-beam spectrophotometer

Geometry: Directional annular 45° illumination / 0° viewing

Spectrophotometer: Sealed optics; 256-element diode array and a high resolution concave holographic grating
Port Diameter/View Diameter: 31.8 mm (1.25 in) illuminated/ 25.4 mm (1 in) measured
Specular Component: Excluded
Spectral Range: 400 nm - 700 nm
Spectral Resolution: < 3 nm
Effective Bandwidth: 10 nm equivalent triangular
Reporting Interval: 10 nm
Photometric Range: 0 to 150 %
Light Source: Pulsed Xenon Lamp
Flashes per Measurement: 1 flash
Lamp Life: > 1 million flashes
Measurement Time: < 1 second from button push to measurement 2 seconds from button push to data display
Minimum Interval Between Measurements: 3 seconds
Standards Conformance: CIE 15:2004, ISO 7724/1, ASTM E1164, DIN 5033, Teil 7 and JIS Z 8722 Condition C
Standards Traceability: Instrument standard assignment in accordance with National Institute of Standards and Technology (NIST) following practices described in CIE Publication 44 and ASTM E259
